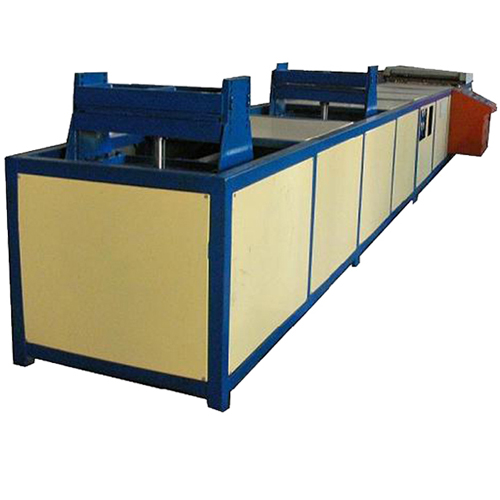

Name：Fiberglass hydraulic program - controlled pultrusion machine
Details
Pacting machine action by the Japanese Omron (Japan Sanken, Siemens, Taiwan Feng Wei) company PLC controller, so to ensure its reliability. HITECH man-machine interface (optional), temperature control using high-precision, dual display instrument, speed digital display. Logical actions can be written once in the programmer temperature can be adjusted in the panel. Once the parameter is set, the entire pultrusion process can be done automatically, including automatic cutting to achieve a high degree of automation.
I plant now the production of hydraulic pultrusion machine using integrated circuit to control, reliable performance, electrical failure rate is low, the hydraulic part of the double power, hydraulic components are imported well-known brands. Equipment running smoothly, long life
| 类别 | 名称 | 液压往复式 | 履带式 | 备注 | ||
|
主 |
型号 | LJY-300 | LJY-200 | LJY-100 | LJL-60 | |
| 纱架（长X宽）m | 4X0.6 | 4X0.6 | 4X0.6 | 4X0.6 | ||
| 浸胶漕（长X宽X高）m | 1.6 X1 | 1.6 X0.7 | 1.6 X0.7 | 1.6 X0.5 | ||
| 机体部分（长X宽）m | 10 X1.2 | 8 X0.8 | 8 X0.8 | 5 X0.6 | ||
| 夹持部分（长X宽）m | 0.8X0.25 | 0.6 X0.25 | 0.53 X0.25 | 1.5X0.3 | ||
| 接料台（长X宽:）m | 2-6X0.8 | 2-6 X0.6 | 2-6 X0.6 | 2-6 X0.6 | ||
| 机器轮廓（长X宽X高）m | 16X1.2X 1.5 | 14X0.8 | 14X0.8X1.1 | 11X0.8X1.8 | 不含接料台 | |
|
主 要 技 术 、 参 数 |
制品最大截面尺寸（宽X高）mm | 800X300 | 400X200 | 200X100 | 100X60 | |
| 最大牵引力（kg） | 30000 | 20000 | 10000 | 1000 | ||
| 最大牵引速度（mm/min） | 1000 | 1200 | 1200 | 1200 | ||
| 最大牵引行程（mm） | 500 | 500 | 500 | 500 | ||
| 电机功率（KW） | 11 | 8 | 6 | 1.5 | ||
| 加热功率（KW） | 12 | 9 | 9 | 9 | ||
| 设备总重（T ） | 3 | 1.5 | 1.5 | 1 | ||
| 单价 | （不含税不含运费） | 18万 | 12万 | 11万 | 8万 |
|
